Hygienic Wall Cladding

Wall Cladding Solutions by SPS CleanTech

Tailored to Your Requirements and Budget

At SPS CleanTech, we specialize in delivering hygienic wall cladding solutions that are specifically designed to meet your controlled environment requirements — both in functionality and budget. With over a decade of experience servicing our customers we have the expertise to help you choose the best wall cladding for your needs.

We are proud partners of Takiron and AM-Clad, offering PVC Wall Panel Systems that deliver superior durability, hygienic performance, and aesthetically pleasing finishes.

unnamed (9)
unnamed (7)
unnamed (10)

Key Advantages of our PVC wall systems:

  • Highly scratch and stain-resistant surfaces
  • Can withstand the harshest cleaning regime used in controlled environments
  • Outperforms traditional painted drywall systems that often require frequent repairs and repainting
  • Easy to maintain surfaces
  • Long-lasting without the need for continuous touch-ups or repairs
  • Thermoform corners onsite or use preformed corners accessories
  • Can heat weld, cold weld or use plastic divider pieces to address seams
  • Available in traditional white, variety of pastel and bold colors and imprinted images
  • Meets cleanroom standards requiring surfaces to be:
    • Smooth
    • Easy to clean
    • Durable
    • Impervious to contamination
    • Scratch and dent-resistant
  • PVC material does not fade or yellow over time
  • Heat welded seams ensures no cracks, gaps or fissures where contaminants could accumulate and no caulking that can fade and require frequent replacement
Request a Free Consultation
Cleanroom #7
Wall Protection Installation #2

Why Choose PVC Over Traditional Methods?

Painted Drywall

  • Traditional epoxy-painted drywall can chip, flake, dent or crack under frequent movement of mobile carts and equipment.
  • Leads to costly repairs and potential facility shutdowns.
  • Does not withstand harsh cleaning over time

FRP Panels

  • Fiberglass Reinforced Plastic (FRP) panels can release fiberglass filaments into the cleanroom when damaged.
  • This is a serious contamination risk in controlled environments.
  • FRP cannot be thermoformed
  • Some FRP panels will fade or yellow over time

Our broad product portfolio ensures that we can meet even the most unique wall cladding requirements.

Takiron© IVY-ONE

Takiron IVY-ONE cPVC (Chlorinated Polyvinyl Chloride) wall cladding system provides users with the cleanest possible environment due to its high-density, non-porous construction, smooth surface finish and natural chemical resistance. The Takiron IVY-ONE system is made from IVY-ONE 573®, a durable material with tremendous impact resistance and durability. It won’t flake, chip or crack. Once the panels are heat-welded together, it becomes a seamless configuration. IVY-ONE is manufactured to withstand strong sporicidal cleaners as well as harsh chemical cleaning agents. It is even strong enough to handle high-pressure washing and direct steam.

One of the biggest advantages of using Takiron IVY-ONE is it’s one of the few wall panel systems that is FM 4882 approved.

FM 4882 is the standard developed by FM Global for products used as interior cleanroom wall materials. The standard combines FM 4880 and ASTM E84 standards into one harmonized standard for pharmaceutical, biotech, and food industries. FM 4882-approved panels are low-smoke emittance and will not allow self-propagation of a fire.

View FM Benefits
View FM Certification
Takiron School #1
Takiron Cleanroom #3
Takiron Cleanroom #2
Takiron Cleanroom #1
Previous
Next

Applications

Our wall cladding systems are widely used across many applications:

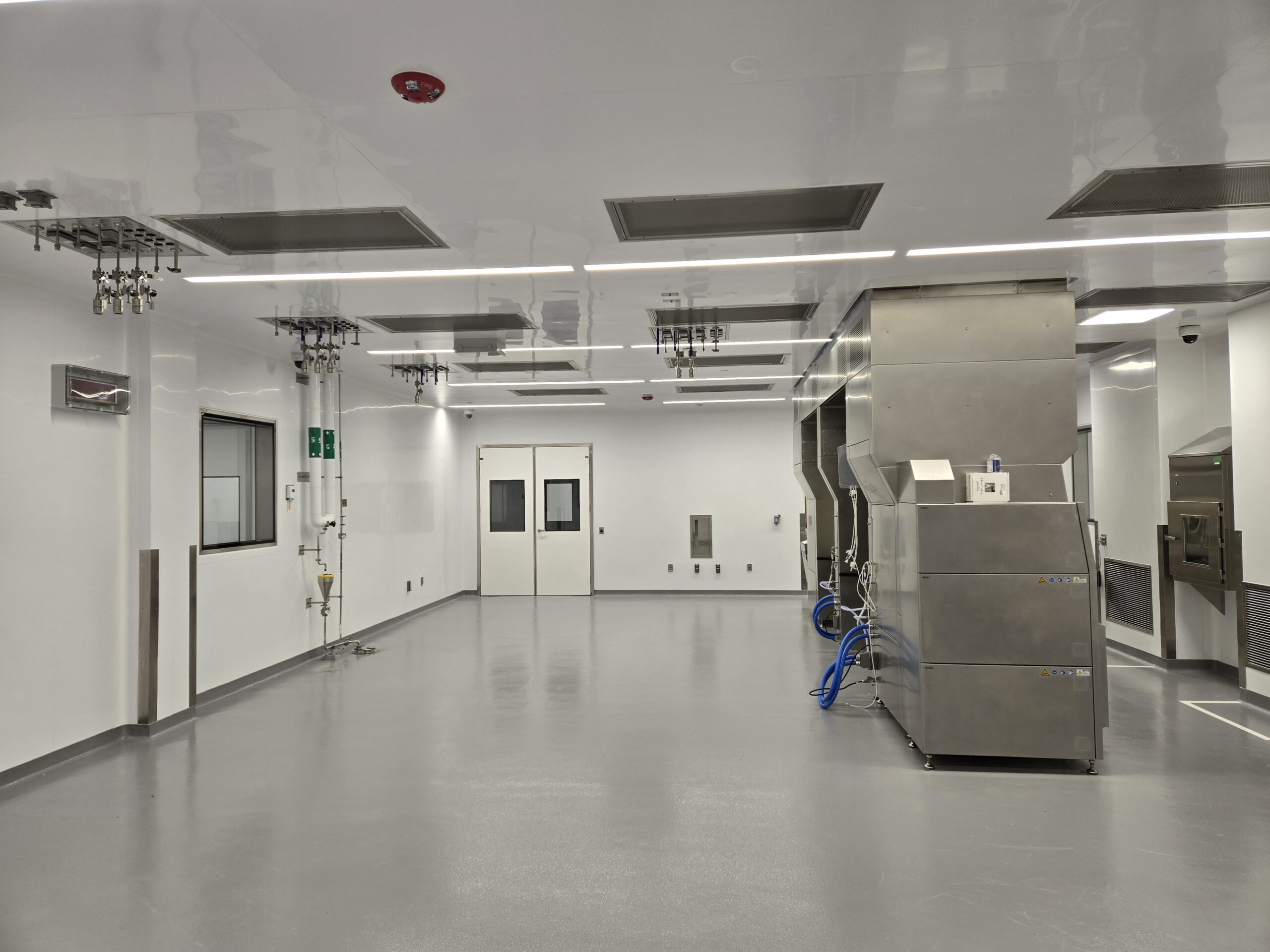

Cleanroom 20

Cleanrooms

Learn More

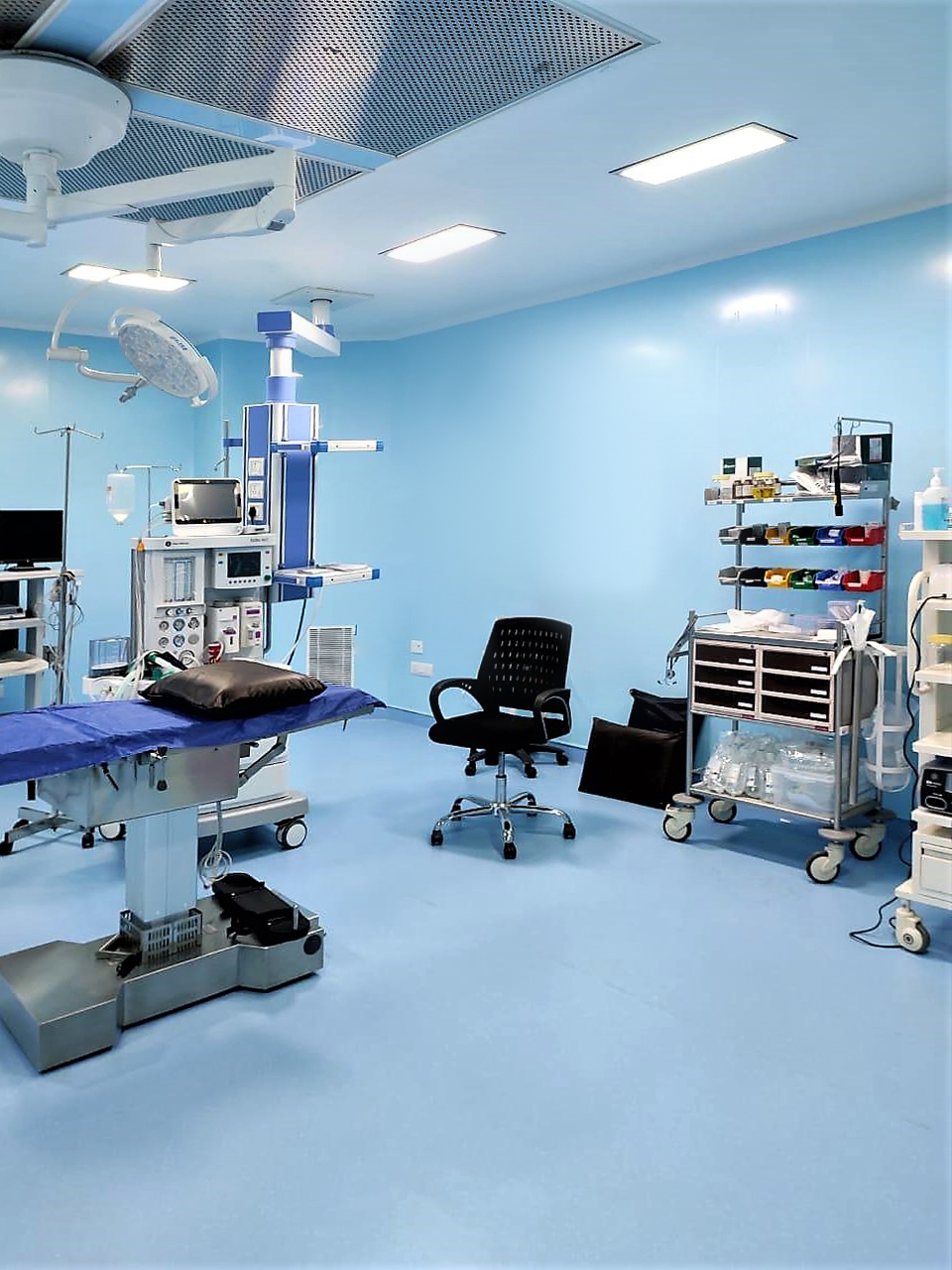

Healthcare 20

Healthcare

Learn More

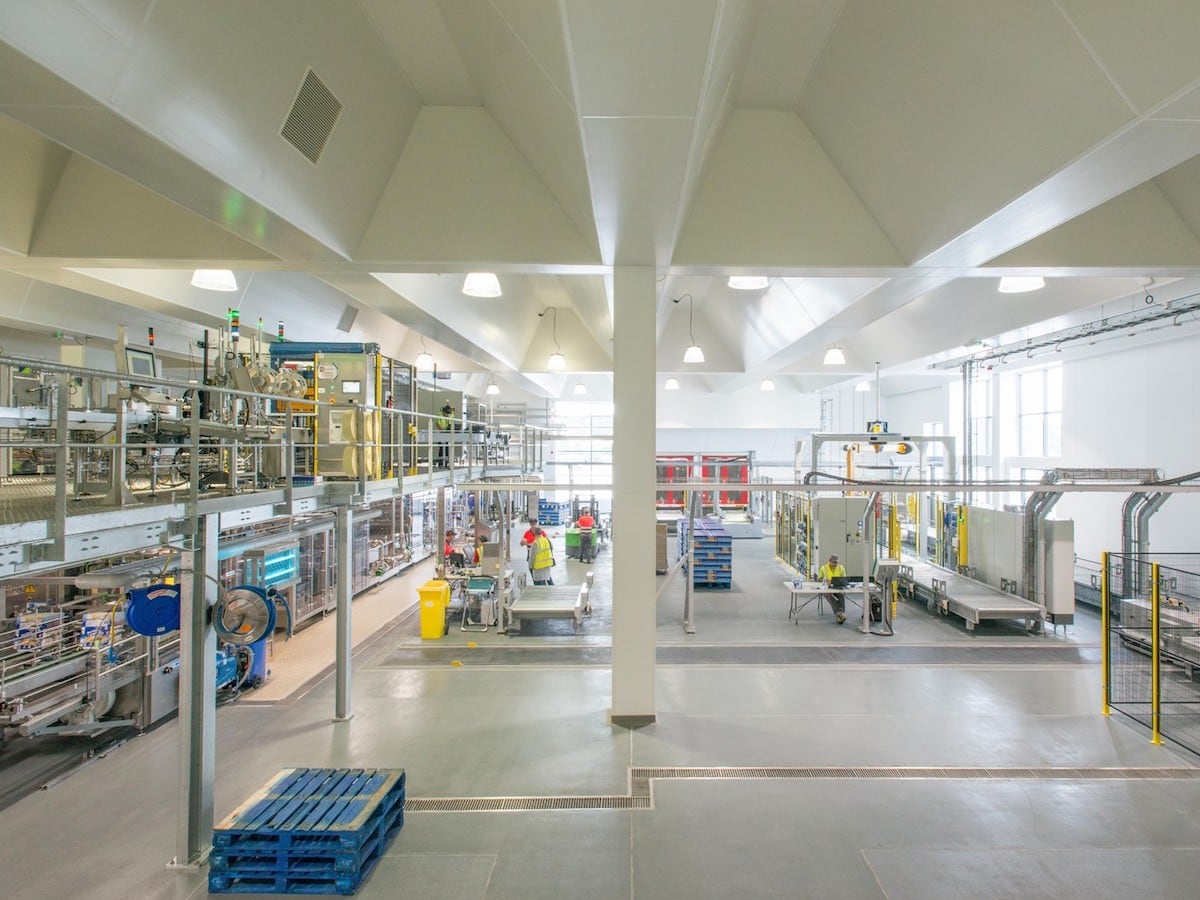

Food & Beverage 20

Food & Beverage

Learn More

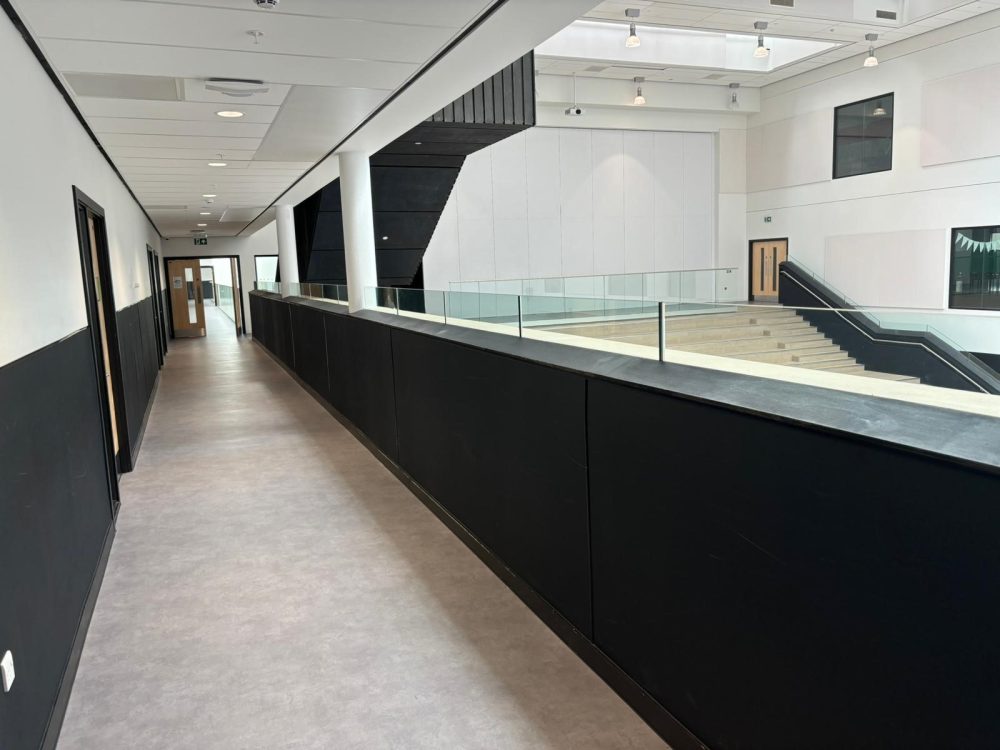

School 20

Schools

Learn More

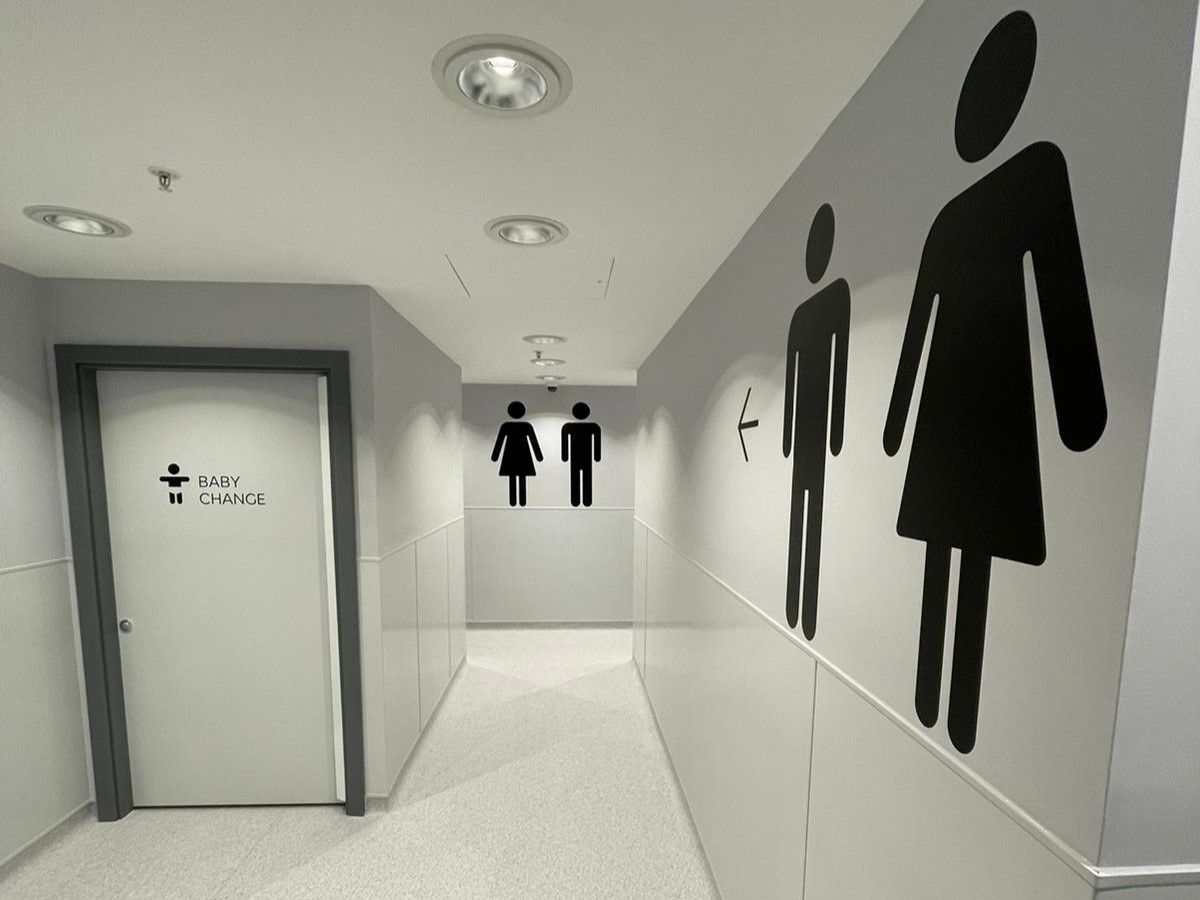

Bathroom & Locker rooms

Bathrooms & Locker Rooms

Learn More

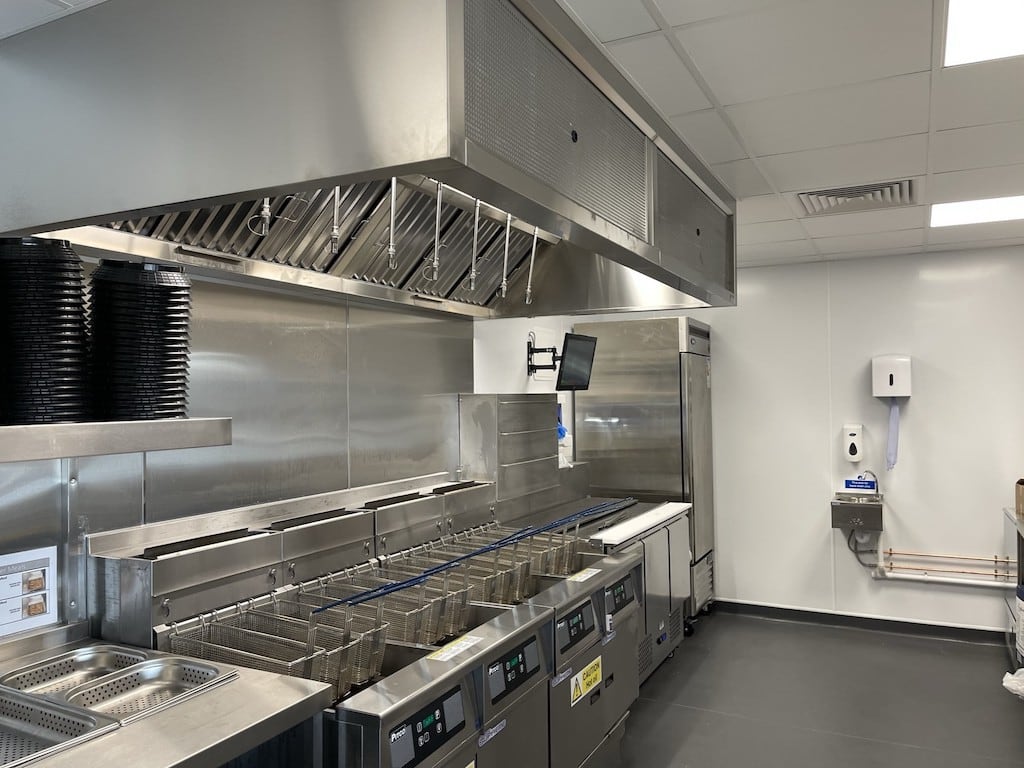

Commercial Kitchens 20

Commercial Kitchen

Learn More

  • 2mm thick cPVC
  • 4ft wide x 8ft high sheets
  • FM 4882 approved
  • Available in white
  • Resistant to rot, rust, corrosion, and stain
  • Low VOC (Volatile Organic Compounds) emitting
  • Meets ISO Class 2 – 9 cleanroom requirements
  • Preformed corners, 3-way corner transitions
  • For full height walls or half height wainscoting
  • Withstands harsh cleaning agents and up to 1400 liquids
  • 1-year guarantee

Visit the Takiron Website Download the preformed Corners PDF Download the Takiron brochure Request a Takiron installation Guide Request an Application Note Request a Takiron Spec Sheet

AM-Clad©

AM-Clad PVCu (Unplasticized Polyvinyl Chloride) panels have a smooth, durable, hygienic, and easy-to-clean surface that helps users meet demanding regulatory requirements, maximize production time and provides superior levels of hygiene and infection control. AM-Clad offers two types of PVCu panels to meet different levels of pvc wall protection – Hygienic Panels (in standard or decorative) and Antimicrobial Panels. All of these Panels are ASTM-E84 Class A smoke and fire rated. These panels can be heat-welded using a color-matched vinyl weld rod, cold-welded using silicone caulking or sealed with plastic Divider/Edge Trims. This process creates a smooth, seamless surface that ensures there is no place to harbor contaminants.

Standard Hygienic Panels

AM-Clad’s PVCu Hygienic Wall system is offered in a variety of colors and patterns to allow customization to distinguish each room.  The PVC Wall Panels are also available in different thickness to match the level of protection required.

For a typical hygiene-critical environment, AM-Clad’s standard Hygienic Panels are more than adequate to provide the protection required.  These Hygienic, premium grade, non-toxic, solid PVCu wall panels ideal for Pharmaceutical, Biotech, Medical, and Food & Beverage facilities

  • 2mm or 2.5mm thick PVCu panels
  • 4ft wide x 8ft, 9ft, or 10ft high
  • ASTM E 84 Class A smoke and fire rating
  • 22 colors available
  • Resistant to rot, rust, corrosion, and stain
  • Meets ISO Class 2-9 cleanroom requirements
  • FDA compliant, USDA compliant, and conforms to the standards of USP797 and cGMP

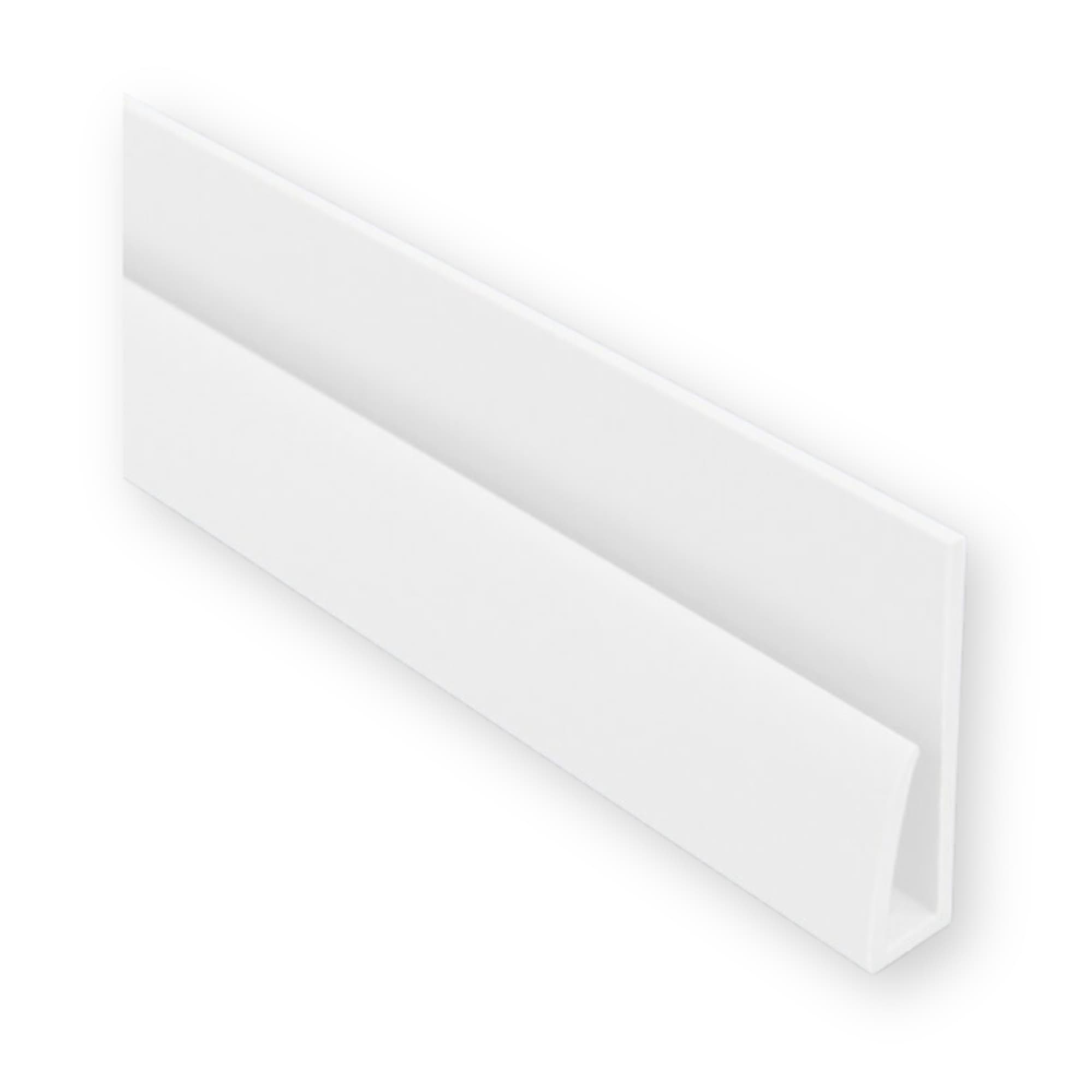

  • Seams can be heat-welded, cold-welded or sealed with Dividers/Edge Trim
  • Can be thermoformed into corners (preformed corners and 3-way corner transitions are available upon request)
  • For full height walls or half-height wainscoting
  • Cost-effective, meets most hygienic requirements
  • Withstands harsh cleaning agents and up to 1400 liquids
  • 20-year guarantee
Download Standard Hygienic Panel System Data Sheet
Download the Chemical Resistance and Stain Report
Request a Download of the CSI Specification
Request a Download of the AM-Clad Installation Guide

Decorative Hygienic Panel

Decorative graphics can transform the feel of any space. It can change a medical facility into a landscape oasis, a sterile school into an encouraging comforting place, or sanitary workspace into a unique, uplifting environment.

AM-Clad’s Vision Panel System offers a selection of attractive designs including tile, brick, wood, marble and fabric, as well as the option to use your own high-resolution photos and graphics to create exclusive designs for your cleanrooms.

The AM-Clad Vision system combines premium grade solid PVCu with advanced high-resolution print technology and a hardwearing protective coating that is proven in commercial cleanroom environments. Our cleanroom wall cladding panels are UV printed and LED cured, delivered ready to install. The digital printed finish does not affect the hygienic properties of the wall cladding panels in any way.

The system is ideal for both dry and wet environments, from kitchens to spas and indoor pool surrounds.

  • 2mm or 2.5mm thick PVCu panels
  • 4ft wide x 8ft or 10ft high
  • ASTM E 84 Class A smoke and fire rating
  • Multitude of colors, designs and custom graphics
  • Resistant to rot, rust, corrosion, and stain
  • FDA compliant, USDA compliant, and conforms to the standards of USP797 and cGMP
  • Seams can be heat-welded, cold-welded or sealed with Dividers/Edge Trim
  • Can be thermoformed on-site minimizing edge joints around corners, window and doors
  • For full height walls or half-height wainscoting
  • Cost-effective, meets most hygienic requirements
  • Withstands harsh cleaning agents and up to 1400 liquids
  • 20-year guarantee
Download the AM-Clad Vision Brochure

Antimicrobial Wall Panels

For hygiene-critical environments to be truly optimized, antimicrobial protection is becoming essential.  The COVID pandemic has taught us that it is more important than ever to protect employees and clients from the spread of bacteria and viruses.  Antimicrobial is defined as any substance that demonstrates the ability to resist, inhibit and prevent the growth of microbes such as bacteria, mold, fungi and viruses.  Antimicrobial should not be confused with Antibacterial.  Antibacterial is different in that it is only effective against bacteria.  Antimicrobial is effective against a much wider spectrum of microbes.

AM-Clad’s Antimicrobial Wall Panels are PVCu panels that are infused with billions of minuscule particles of silver ions during the manufacturing process.  The silver ions are invisible to the naked eye and are dispersed throughout the panel, not just on the surface.  These silver ions provide the extra level of antimicrobial protection that traditional PVCu panels cannot.

To achieve the highest level of protection against microbes, bacterial, mold and mildew, AM-Clad is pleased to offer Antimicrobial Wall Panels.  These Panels have silver ions embedded throughout which naturally provides a superior level of hygiene and infection control.

Antimicrobial
Download the Antimicrobial Panel System Data Sheet
Download the Chemical Resistance and Stain Report
Request a Download of the CSI Specification
Request a Download of the AM-Clad Installation Guide
Request a Download of the Antimicrobial Wall System Advantages Application Note
  • 2mm or 2.5mm thick PVCu panels
  • Antimicrobial design protects against the spread of contagions
  • 4ft wide x 8ft, 9ft, or 10ft high
  • ASTM E 84 Class A smoke and fire rating
  • 6 colors available
  • Resistant to rot, rust, corrosion, and stain
  • Meets ISO Class 2-9 cleanroom requirements
  • FDA compliant, USDA compliant and conforms to the standards of USP797 and cGMP
  • Seams can be heat-welded, cold-welded or sealed with Dividers/Edge Trim
  • Can be thermoformed into corners (preformed corners and 3-way corner transitions are available upon request)
  • For full height walls or half-height wainscoting
  • Withstands harsh cleaning agents and up to 1400 liquids
  • 20-year guarantee

Sealants

Chem Link, a division of Soprema, formulates and manufactures high-performance adhesives, sealants, coatings, and related products.  Their sealants and adhesive products are based on proprietary formulations that combine the highest performance with low environmental and human health risks.

M-1CR Sealant

The M-1CR (clean room) Sealant is designed specifically for controlled environments where molecular airborne contamination can impact human health.  It is the perfect solution for cleanroom manufacturing operations in pharmaceutical, biotech and food & beverage clean rooms.

The M-1 CR is a polyether based sealant that is solvent-free, has extremely low VOC and is designed for application in areas where outgassing and solvents are not tolerated. It releases virtually no molecular air contamination and contains no isocyanates.  It also cannot “out-gas” on damp surfaces as is common with urethane sealants.

Available in white color in a 10oz/300ml Cartridge or a Field Pack with qty 16 Cartridges.

Product Features

  • 100% VOC Compliant ~ less than 15 grams/liter
  • Tough elastomeric bonds
  • Solvent Free
  • Fast Setting
  • High adhesion
  • Will not shrink or discolot when exposed to UV light
  • Paintable within 24 hours
  • Gun grade, no special tools or mixing required
  • Can be applied at temperatures as low as 32°F (0°C)
  • Made in the USA – ISO 9001:2015 certified
M-1 CR cartridge
Download the M-1 CR Data Sheet

B26 Caulk Gun

Due to the viscosity of the M-1 CR Sealant, it is highly recommended to utilize Chem Link’s Albion B26 Caulk Gun.  This Caulk Gun has a high thrust ~ 26:1 mechanical advantage drive. Designed for use with the M-1 CR 10 oz /300 ml Cartridges.

Product Features:

  • 26:1 thrust ratio makes it easier to apply the M-1 CR Sealant
  • Full-sized handle for comfortable, efficient dispensing
  • Half-cradle carriage securely holds cartridges and rotates for convenience.
  • Includes built-in cartridge puncture wire and ladder hook pull.

DuraSil® Sealant

The DuraSil® Sealant is a neutral-cure silicone sealant used for many applications. It can be used to fill gaps on ceiling coves and around door and window frames. DuraSil is stable to temperatures up to 400°F (204°C).

Available in white color in a 10oz/300ml Cartridge or a Field Pack with qty 24 Cartridges.

Product Features

  • Neutral-cure
  • Solvent-free, 100% solids will not shrink upon curing
  • Non-slump, can be applied vertically and overhead
  • 10-minute skin over • Color stability, will not suntan
  • Color matching available in bulk quantities
  • ± 50% joint movement
  • Made in the USA — ISO 9001:2015 certified processes
DuraSil cartridge
Download theDuraSil CR Data Sheet

Thermoformer

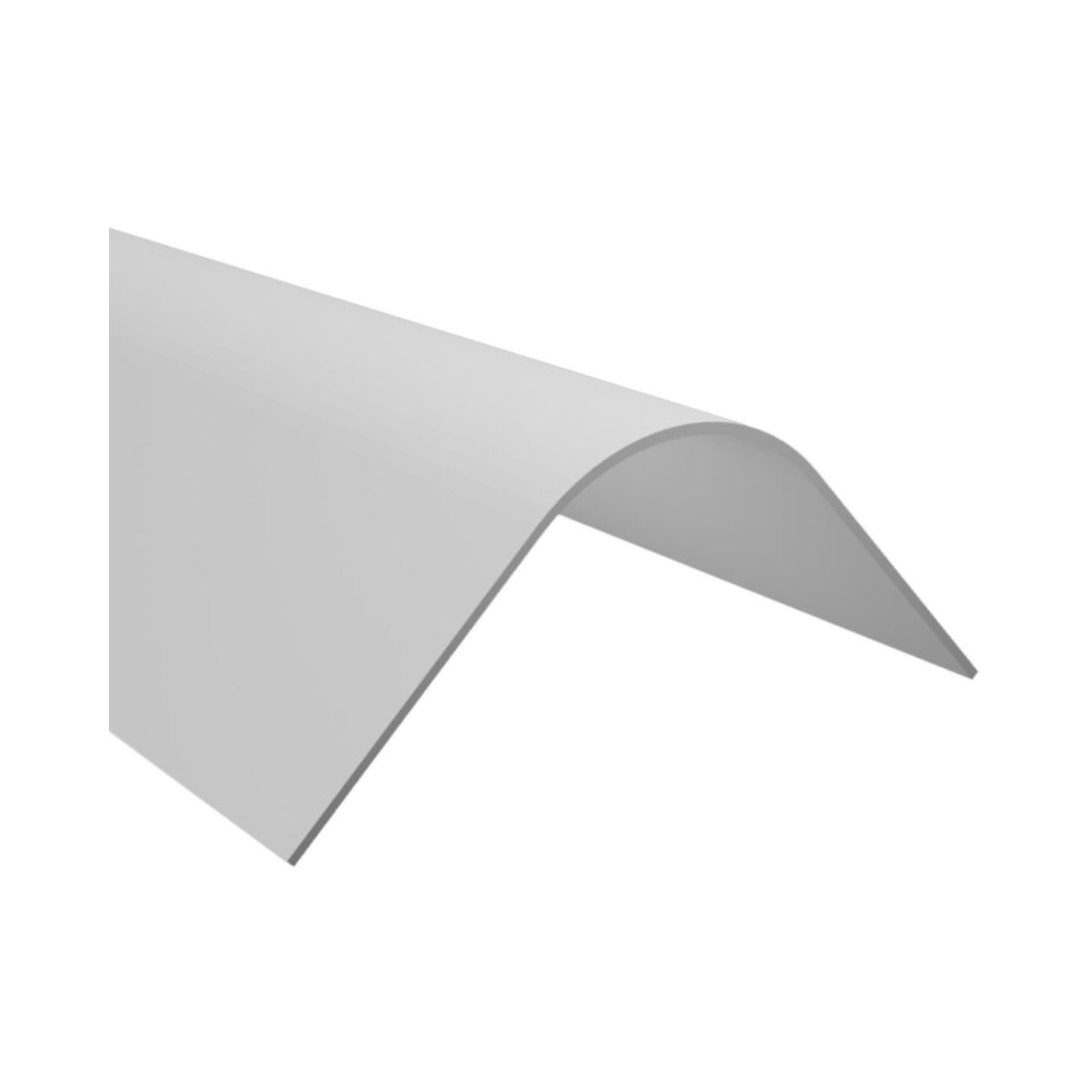

SPS CleanTech offers preformed Curved Radius or 90 degree Corners using AM-Clad Panel PVCu material that can be installed without thermoforming any panels in the field. To save time and money, AM-Clad Panels can also be formed into “L” Corners (exterior or interior) in the field using the Clad-FormTM Thermoformer. Clad-Form is a durable thermoformer with a Patent Pending design and a built-in controller. Capable of handling 10 foot long panels, it can bend panels to the desired angle in 25 to 35 seconds.
  • 10 feet long, heated width of 1/8”
  • All-aluminum case, just 22.5lbs (9.2kg) and rugged design makes it easy to use from jobsite to jobsite
  • 120VAC, draws 4.8amps so it can be plugged in anywhere
  • Designed specifically for PVC Wall Cladding up to 3mm thick
  • Optional Bending Bars (6 feet and 10 feet long) help make tight accurate bends
  • Made in the USA

Thermoformer
Thermoformer Bending Bars
